Multi-interface Integrated Equipment Pigtail | Multifunctional Composite Harness

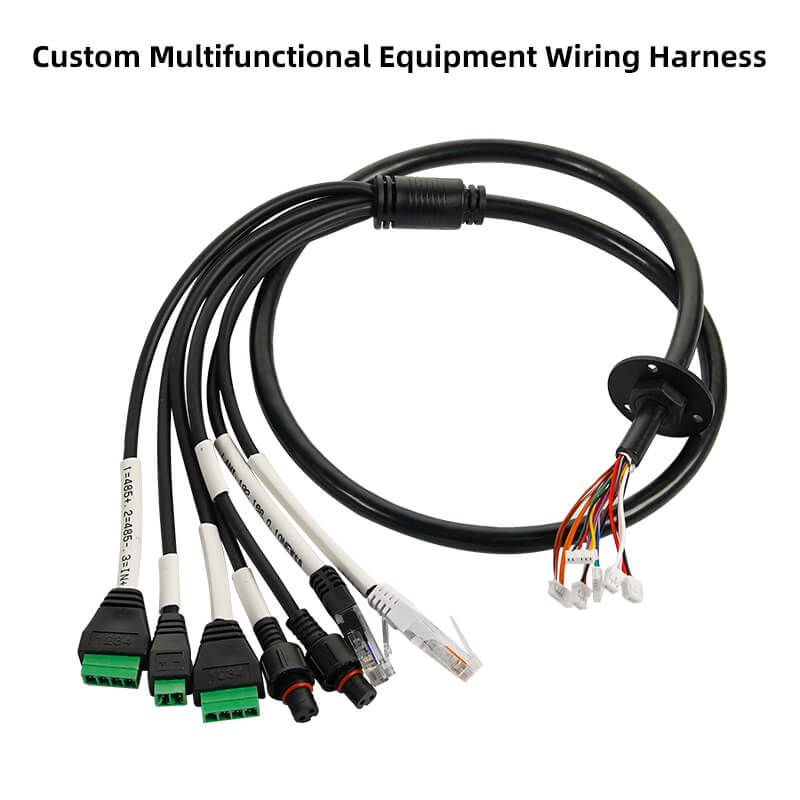

Multifunctional Integrated Composite Wiring Harness

Integrated multi-channel signal integrated outgoing wire harness equipped with a flange disc fixing base, which can be directly locked onto the equipment housing panel to realize embedded installation. The wire harness is divided into multiple independent interfaces: RJ45 network crystal connectors, green pluggable terminal blocks, waterproof aviation plugs, and PH/XH terminal wires, integrating network communication, power supply and switching signal transmission.
The main cable adopts high-quality sheathed cables with multiple internal signal wires arranged independently. Equipped with a magnetic ring anti-interference structure, it effectively shields electromagnetic interference and ensures stable data transmission. The connectors are manufactured by injection molding technology with good tensile and wear resistance. Each branch cable is clearly marked with printed characters to facilitate on-site wiring identification and reduce the probability of installation errors.
Customization of interface combinations, cable lengths, conductor specifications and terminal models is supported. Branches such as RJ45 connectors, aviation plugs, terminal blocks and plastic terminals can be added or removed as required. It is widely applied to industrial cameras, intelligent terminals, access control equipment, IoT gateways, all-in-one security devices and outdoor monitoring instruments. The product complies with RoHS environmental standards, and the original manufacturer supports non-standard customized wire harness solutions.

+86 13828433509 sophia@inshanhe.cn
Consult
Advantages
Flange Disc Base: Supports locked panel mounting and integrated cable routing for equipment, delivering a neat and aesthetic appearance.
Integrated Multi-Interface Design: Enables synchronous output of network, power and multi-channel signals, eliminating the need for wiring numerous separate cables.
Built-in Anti-Interference Magnetic Rings: Reduce electromagnetic interference to ensure long-term stable transmission of network and signals.
Marked Branch Cables for Identification: Each cable is printed with identification marks to avoid wrong connections during on-site maintenance and wiring.
Layered Injection Molding: Reinforced cable split sections resist cracking and wire breakage under repeated bending with excellent tensile resistance.
Flexible Non-Standard Customization: Optional RJ45 connectors, aviation plugs, terminal blocks, PH/XH terminals, with adjustable cable length and wire gauge.
Weather-Resistant Sheathed Cables: Insulated and corrosion-resistant, suitable for indoor equipment and light-duty outdoor equipment applications.

Fixed Structure: Circular flange mounting base

Integrated Interfaces: RJ45 crystal connector, green pluggable terminal block, miniature aviation plug, multi-P plastic terminal

Anti-interference Configuration: Built-in magnetic ring

Process: Reinforced injection molding for branches, printed cable marking

Applicable Devices: Industrial smart cameras, IoT gateways, access control terminals, integrated security devices, environmental monitoring equipment

Customization Scope: Addition or removal of interface types, overall cable length, branch length, terminal model, cable shielding selection
