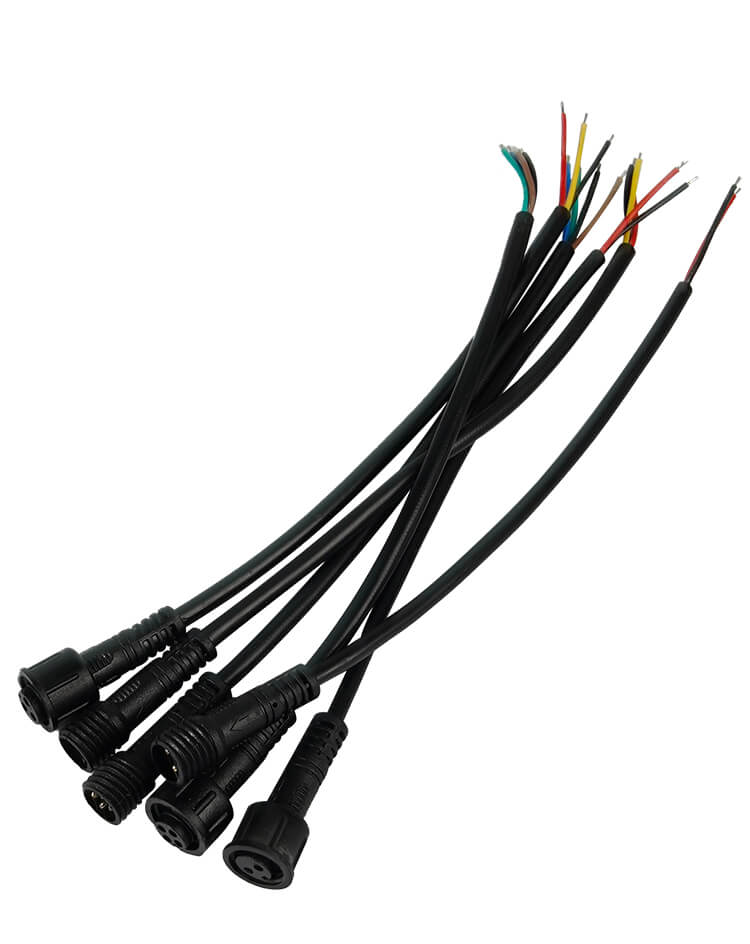

IP67 Waterproof Connection Cable

Product Features

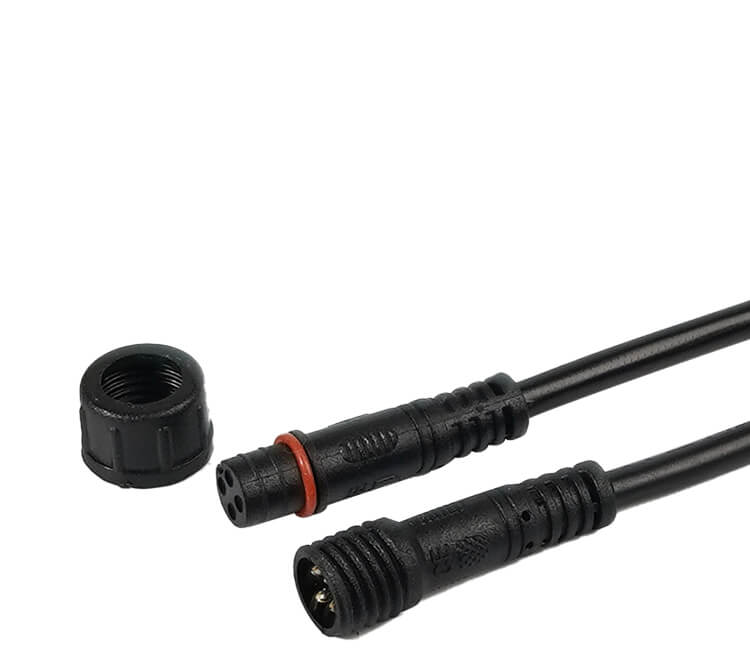

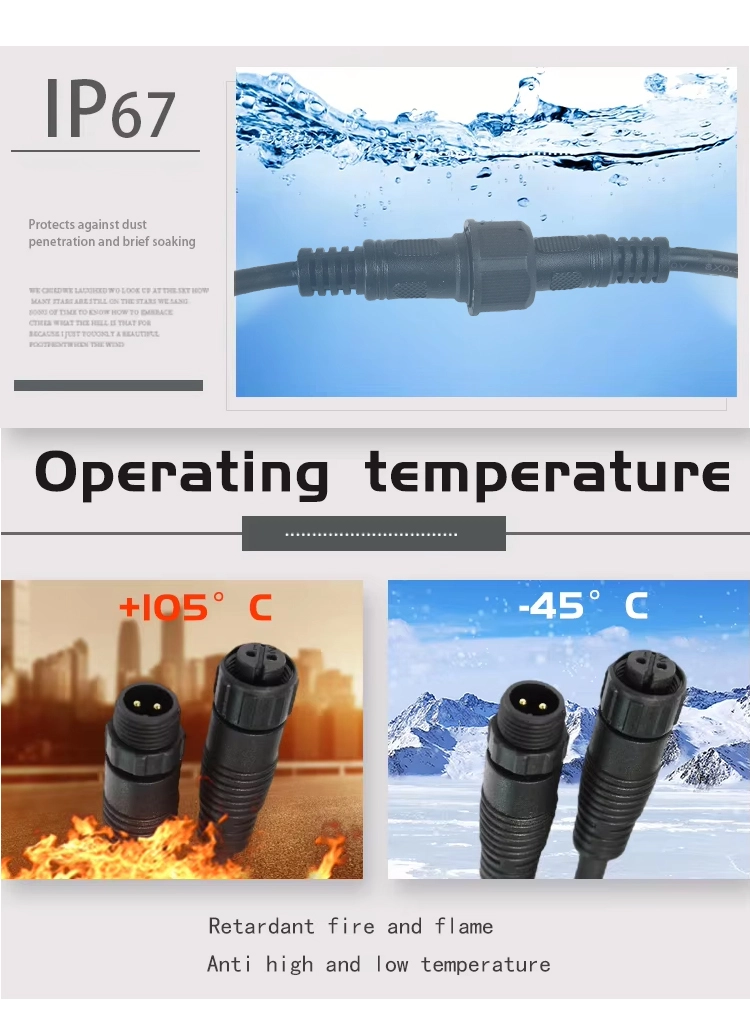

1. IP67 Waterproof & Dustproof: Built-in red silicone sealing ring and threaded lock nut deliver excellent waterproof and dustproof performance after connection. The cable works reliably against rain, moisture and dust, ideal for outdoor and harsh working conditions.

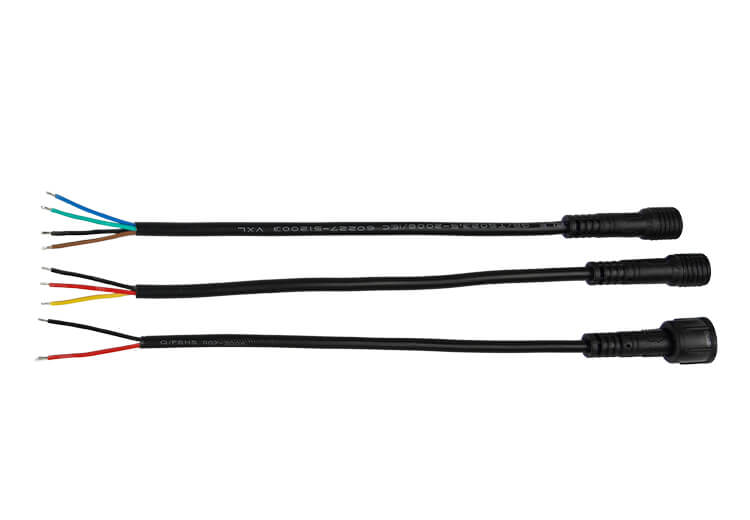

2. Tinned/Gold-plated Pure Copper Terminals: The 2/3/4-core terminals are made of high-purity copper with tin or gold plating. They feature superior conductivity, low contact resistance, outstanding anti-oxidation and anti-corrosion performance, and avoid loose connection or poor contact after long-term use.
3. High-strength Integral Injection Molding: The connector housing is made of ABS engineering plastic via integral injection molding, which is impact-resistant and anti-aging. The inner conductors are firmly combined with the connector, providing great tensile and bending resistance for long service life.
4. Male-Female Mating with Polarization Key: Standard M8 male and female connectors come with anti-misinsertion design to prevent reverse connection. Thread locking structure keeps the connection tight against loosening, vibration and detachment, suitable for mobile and vibrating equipment.
5. Multi-specification Compatibility: It supports simultaneous power and signal transmission via 4 cores, and is compatible with cables of different gauges made of PVC, TPE or silicone. Matching wire gauges can be selected according to current requirements to meet power and signal transmission needs of various devices.

Product Advantages

• Reliable Connection: The dual waterproof structure and pure copper terminals maintain stable conductivity in humid, dusty and vibrating environments, with far lower failure rate than ordinary non-waterproof connectors.
• Easy Installation & Maintenance: Straight plug-in mating plus thread nut locking requires no special tools for quick assembly and disassembly on site. No need to disassemble equipment for later maintenance, greatly cutting operation and maintenance costs.
• Excellent Weather Resistance & Wide Application: It operates stably within a wide temperature range of -20℃ to +80℃. The housing is UV-resistant and anti-aging, resisting cracking and yellowing after long-term outdoor use with a service life of over 5 years.
• High Customization Flexibility: Customizable cable length, AWG wire gauge, cable material (PVC/TPE/Silicone) and terminal type. Exclusive mold development is available to match the interface requirements of customer equipment.

Application Scenarios

• Power and signal connection for outdoor LED landscape lights, wall washers and floodlights
• Power supply for security cameras, outdoor sensors and access control devices
• Waterproof connection for new energy equipment including photovoltaic junction boxes and small energy storage devices
• Signal transmission for industrial automation equipment, smart sensors and instruments
• Waterproof wiring for outdoor smart home devices, courtyard facilities and power tools

 Standard Accessories

1. Male Waterproof Cable × 1
2. Female Waterproof Cable × 1
3. Matching Threaded Lock Nut × 1

 FAQ

Q1: How is its waterproof performance? Can it be used when fully immersed in water?

A: The standard version is rated IP67, which can withstand rain splash and humid environments, but is not suitable for long-term immersion. We can customize IP68 versions for underwater use. All customized IP68 products will pass immersion tests before delivery to guarantee waterproof performance.

Q2: Can I customize the cable length and wire gauge?

A: Yes. We offer custom lengths from 0.3m to 10m. Wire gauges ranging from 20AWG to 26AWG are selectable based on your current requirements. Special cables such as high-temperature resistant silicone cables and flame-retardant cables are also available.

Q3: Can you modify the connector type or terminal definition to fit my equipment?

A: Sure. We provide OEM and ODM services. We can adjust terminal pin assignment and anti-misinsertion structure as required. Special versions equipped with fuses or reverse polarity protection modules are also available to meet personalized demands.

Q4: What is the warranty period?

A: The standard product comes with a 12-month warranty. We offer free repair or replacement for non-artificial quality faults within the warranty period. Extended warranty can be negotiated for long-term partners.

Q5: What is the current carrying capacity? Is it applicable for high-power devices?

A: The standard 4-core cable has a rated current of 2A to 5A depending on wire gauge, designed for low-power power supply and signal transmission. For higher current load, you can choose cables with larger wire gauges (e.g. 16AWG) or upgrade to larger waterproof connectors like M12/M16. Feel free to consult our technical team for tailored solutions.
