Integrated Network Power Y-Type Splitting Harness

Integrated Network Power Y-Type Splitter Harness

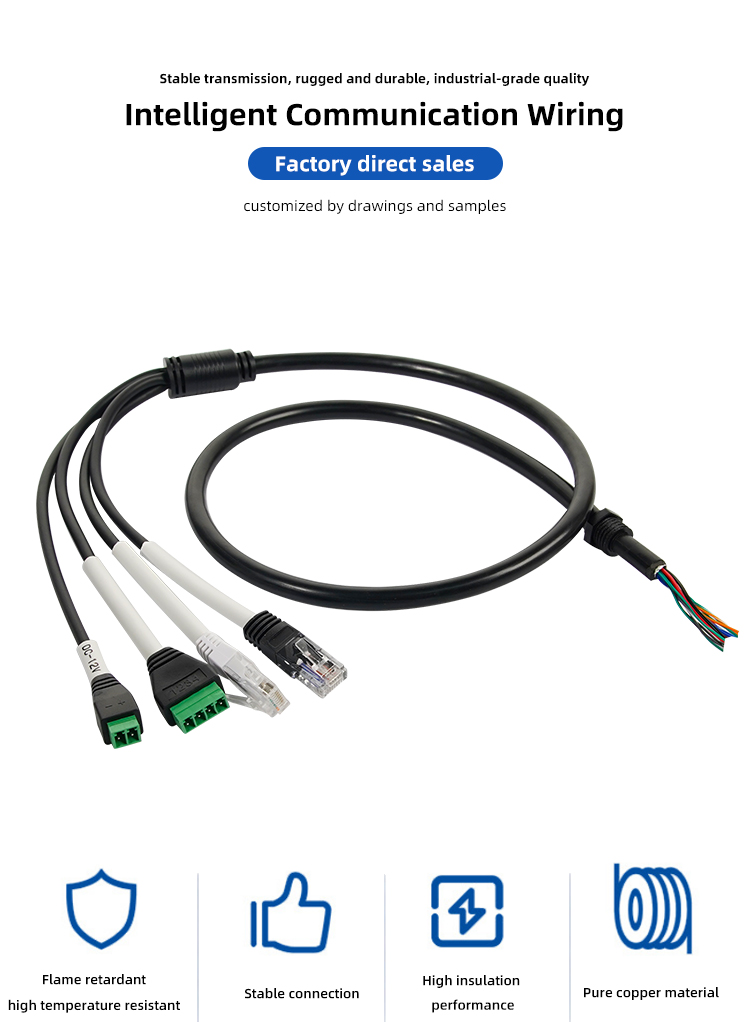

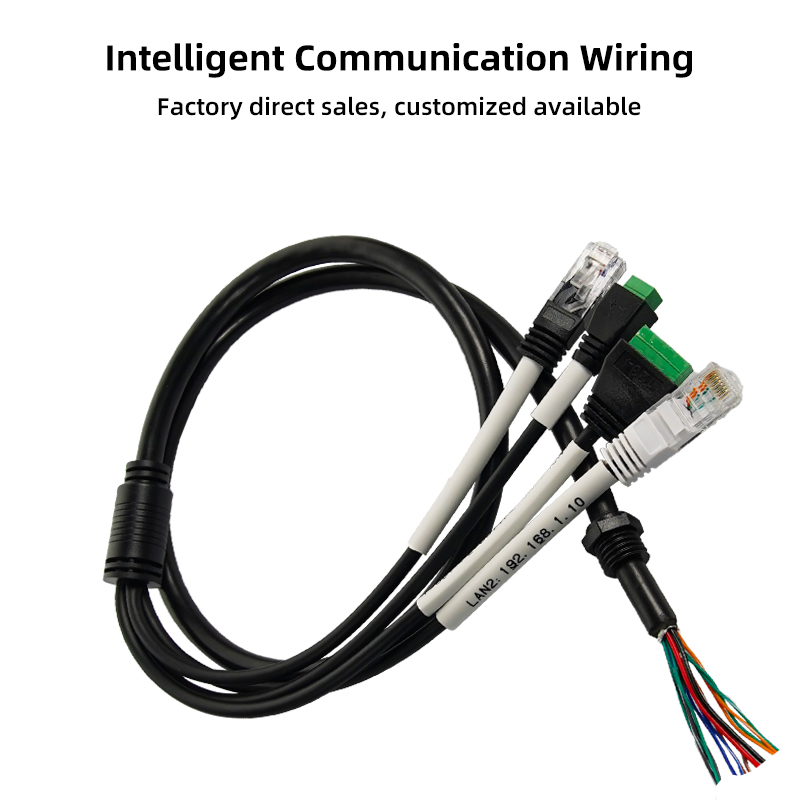

The main cable is equipped with an integrally molded anti-pull magnetic ring, with one end featuring multi-colored separated core wires. The branch cables consist of two RJ45 crystal head network cables and two green pluggable terminal blocks. A DC-12V power channel is marked to enable simultaneous transmission of network signals and DC power. This cable is widely used for IPC cameras, access control equipment and network terminals.

The wire adopts high-quality oxygen-free copper conductors and eco-friendly PVC insulation sheath, featuring flexibility and resistance to bending. An anti-interference magnetic ring is fitted on the main cable to effectively shield electromagnetic clutter and ensure stable transmission of network signals. Branch junctions are integrally molded for high tensile resistance and crack resistance. Each branch is marked with a sleeve for circuit identification, facilitating on-site wiring recognition.

Customization is available for cable length, wire gauge, RJ45 wiring sequence, terminal specifications and branch quantity, and the definition of DC power supply pins can be adjusted. It is extensively applied to network cameras, industrial terminals, building access control systems and intelligent security equipment. The product complies with RoHS environmental standards, and the factory supports customization of various non-standard wire harnesses.

+86 13828433509

sophia@inshanhe.cn

Consult

Advantages

Composite Transmission of Data and Power: Network cable signals and DC12V power supply are integrated into a single wire harness to simplify equipment wiring.

The main cable is equipped with a built-in anti-interference magnetic ring to suppress electromagnetic interference and ensure stable network transmission without packet loss.

Multi-branch combined interface: RJ45 crystal plug plus pluggable terminal block, compatible with connection modes of various devices.

Integrally molded reinforcement at branch nodes delivers tensile resistance, preventing wire breakage and cracking during long-term operation.

Circuit sleeves are marked for differentiation, facilitating construction and maintenance and avoiding wiring confusion.

Flexible customization solutions: Overall length, branch length, network cable wiring sequence and terminal model can be adjusted freely.

Wide range of applicable scenarios: IP network cameras, intelligent access control systems, industrial IoT terminals and security monitoring equipment.

Manufactured with eco-friendly raw materials, compliant with RoHS standards, supporting domestic and export orders.

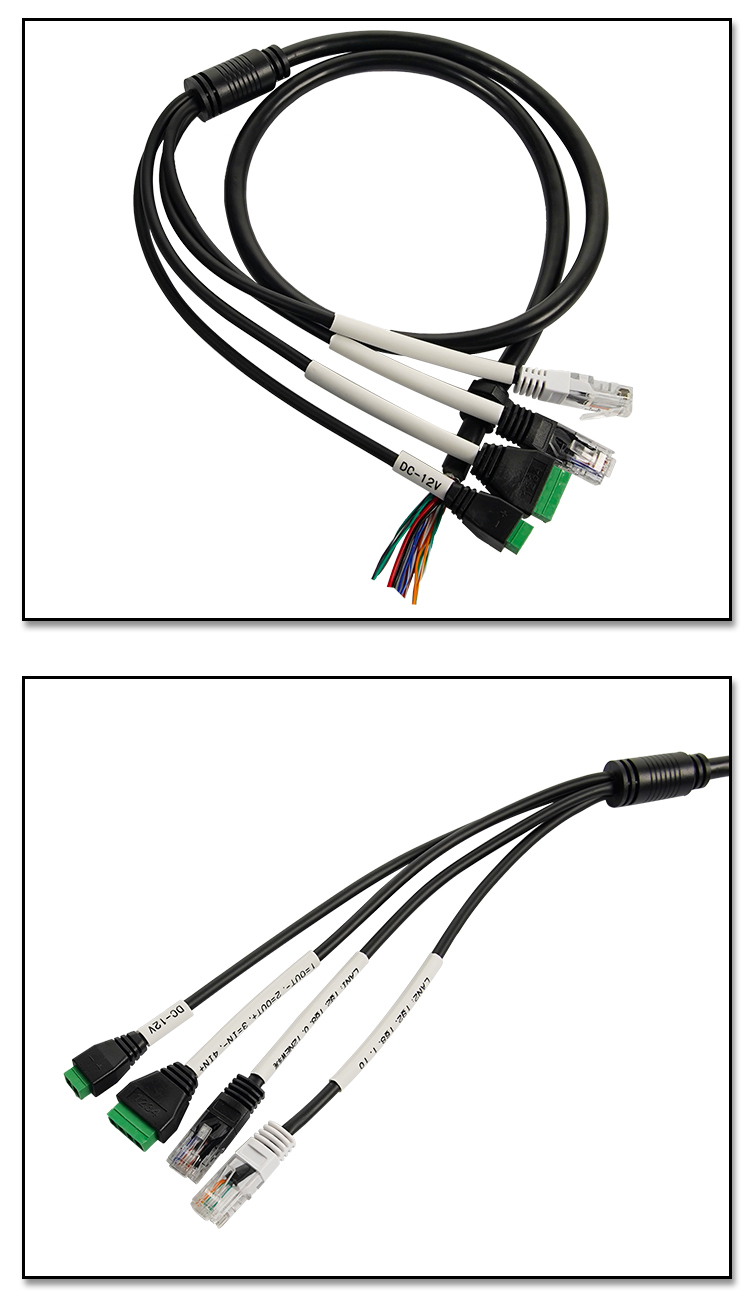

Main Cable: Multi-core composite cable with molded ferrite bead and color-coded loose wires at the end

Branch Configuration: 2 sets of RJ45 crystal connectors, 2 sets of green pluggable terminal blocks, integrated DC-12V power supply channel

Conductor: Oxygen-free copper stranded wire

Outer Sheath: Black eco-friendly PVC insulation

Technology: Integrated molding for the main cable ferrite bead and cable split point

Applicable Devices: IP network cameras, access control controllers, industrial network terminals, intelligent security equipment

Customizable Items: Overall cable length, length of each branch, network cable wiring sequence, terminal specifications, combination of branch interfaces

1-to-4 RJ45 & DC Terminal Y-Shape Harness | Integrated Ethernet and Power Splitter Cable

With Anti-Interference Ferrite Core | Connection Cable for Security IPC Network Cameras

RJ45 Crystal Plug + Green Pluggable Terminal | Integrated Data and Power Supply

Custom non-standard length, wire sequence and specifications available
